AST 10: Asset Tracker

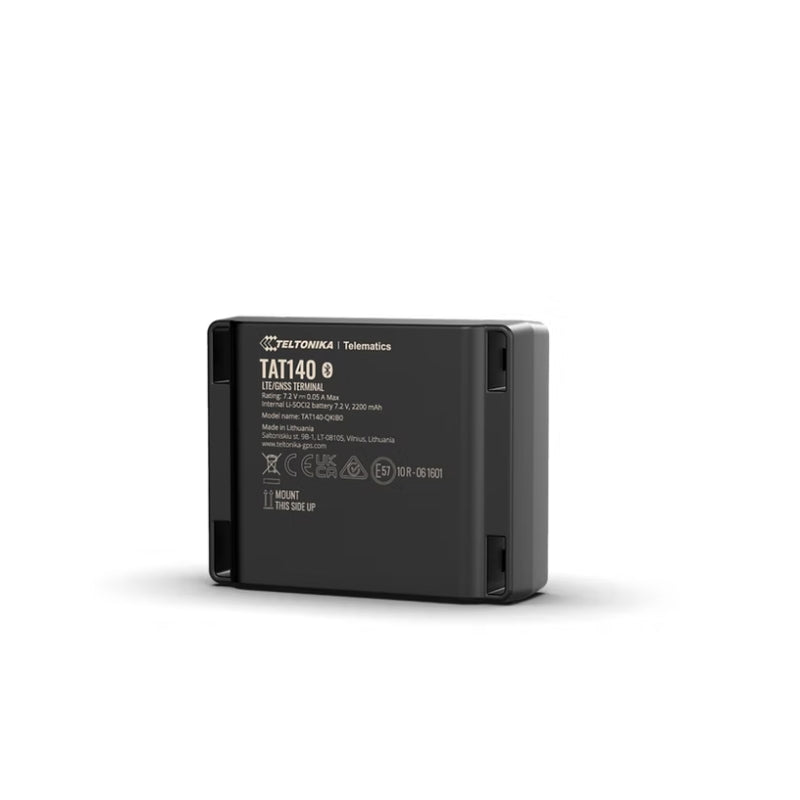

The Teltonika TAT140 is a battery-powered asset tracker designed for reliable long-term monitoring of non-powered assets such as trailers, construction equipment, containers, tools, and other valuable property.

Specifications

Cellular Technology: 4G LTE Cat 1 with fallback to 2G GSM/GPRS
GNSS Support: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
Tracking Sensitivity: High sensitivity GNSS receiver
Positioning Accuracy: Typically 2.5 m CEP or better

Bluetooth: Bluetooth 4.2 + Low Energy (BLE) for connecting external sensors
Battery Type: High-capacity non-rechargeable Lithium Thionyl Chloride (Li-SOCl₂)
Battery Voltage: 7.2 V
Battery Capacity: 2200 mAh
Battery Life: Up to about 3 years depending on reporting configuration and usage

Data Transfer:
• LTE for fast uplink and downlink communication
• GSM/GPRS fallback for extended coverage

Memory: Internal flash memory for logs and configurations
SIM Slot: Micro-SIM slot
LED Indicator: Status LED for device and network feedback

Housing and Protection: Rugged enclosure with IP68 rating for dust and water resistance

Physical Characteristics:
• Dimensions: Approximately 78 × 63 × 28 mm
• Weight: Around 115 g (with battery)

Operating Environment:
• Operating Temperature: Wide automotive range suitable for various climates
• Operating Humidity: 5% to 95% non-condensing
• Ingress Protection: IP68 for outdoor use
